"Cosmo-Naught" cases for Buchla 4U instruments
- Standard 8-spaces, approx. 21 x 17 x 5.5 inches.
Two versions are available:
2. The "Docking bay" version has two oval cutouts and one rectangular for extra IO expansion "Accessory Pods" - see
Q: Is it difficult to install my modules into the new case case?
Contact user luther_r at modwiggler or mail
Click here to see special considerations for the 208c and 218e in my cases.

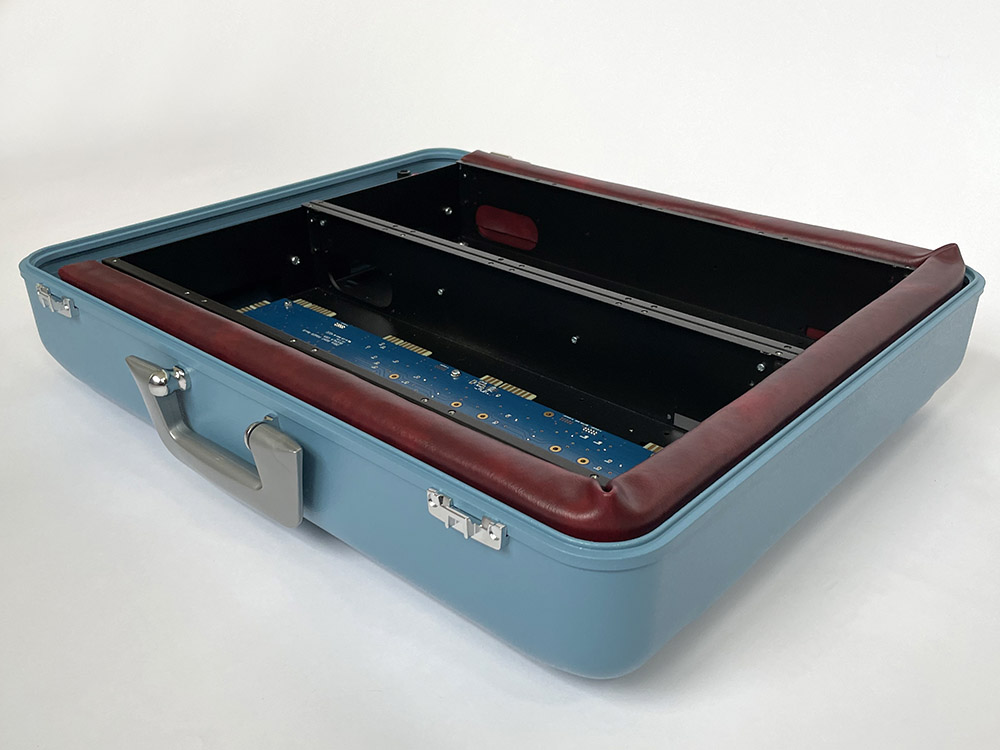

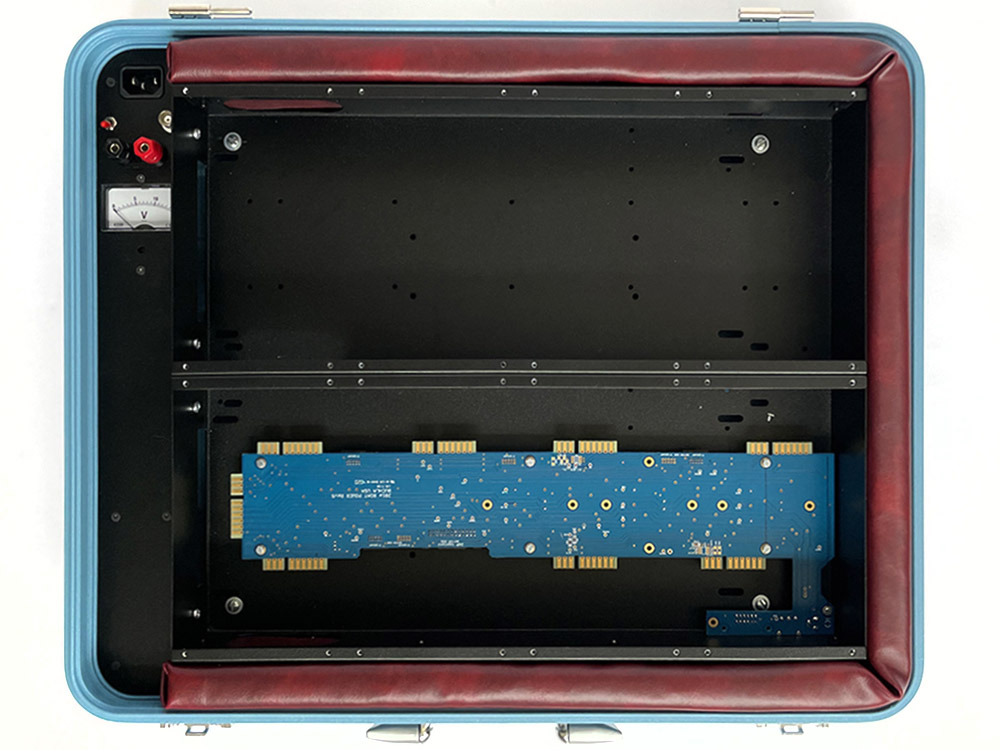

Classic model

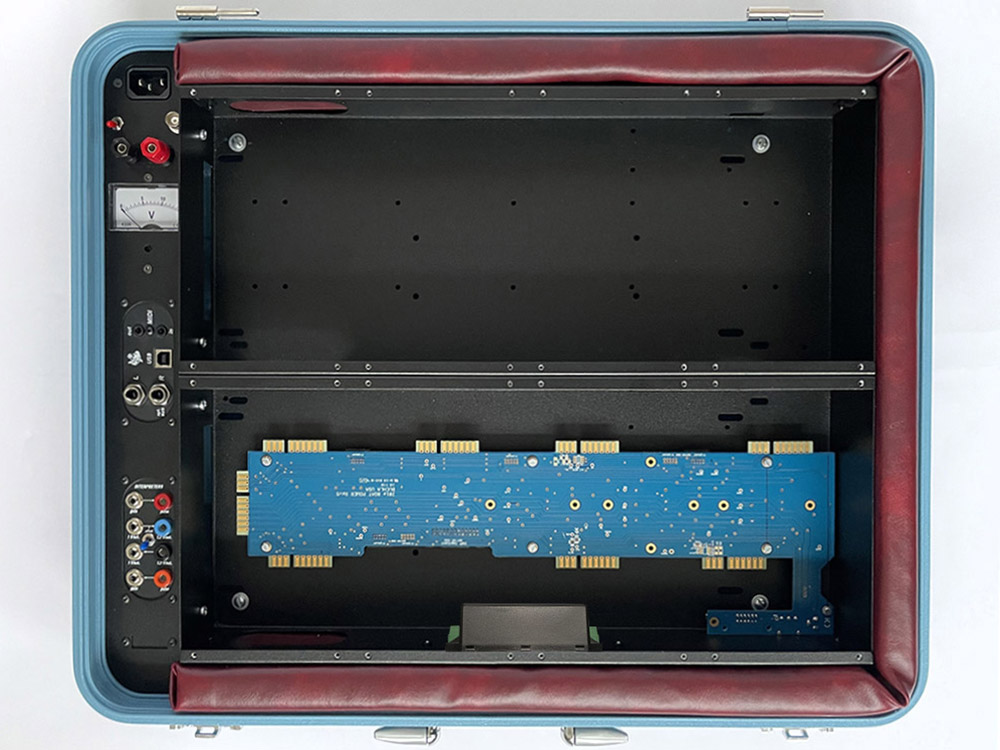

Docking Bay model (shown with optional 5XIO and Interpreters Accessory Pods)

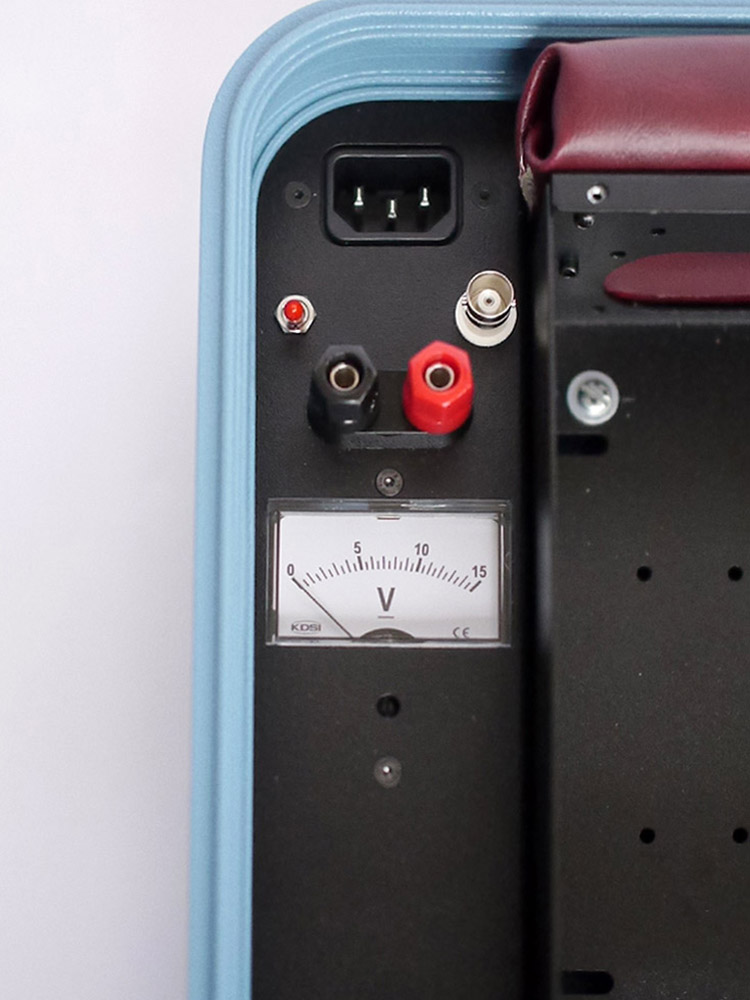

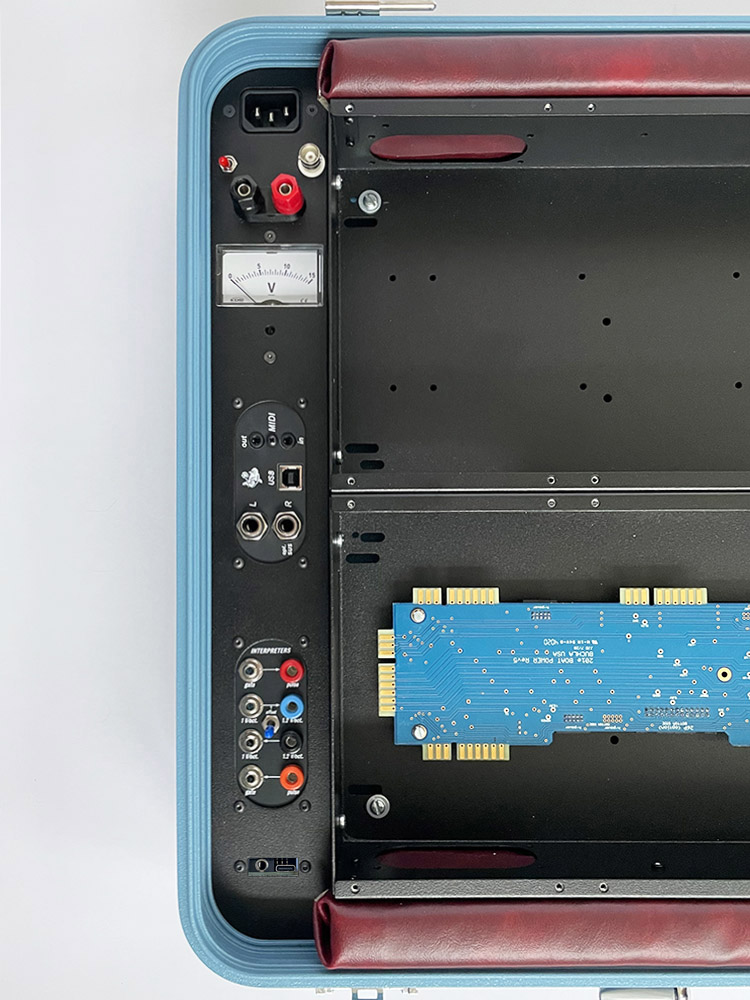

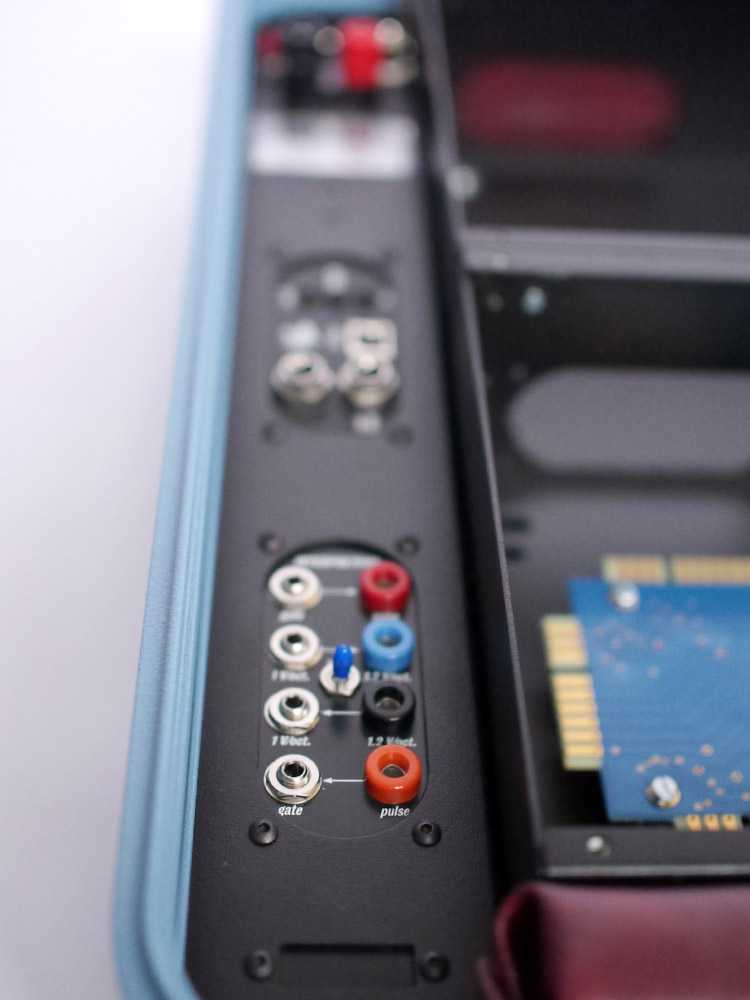

Panel details

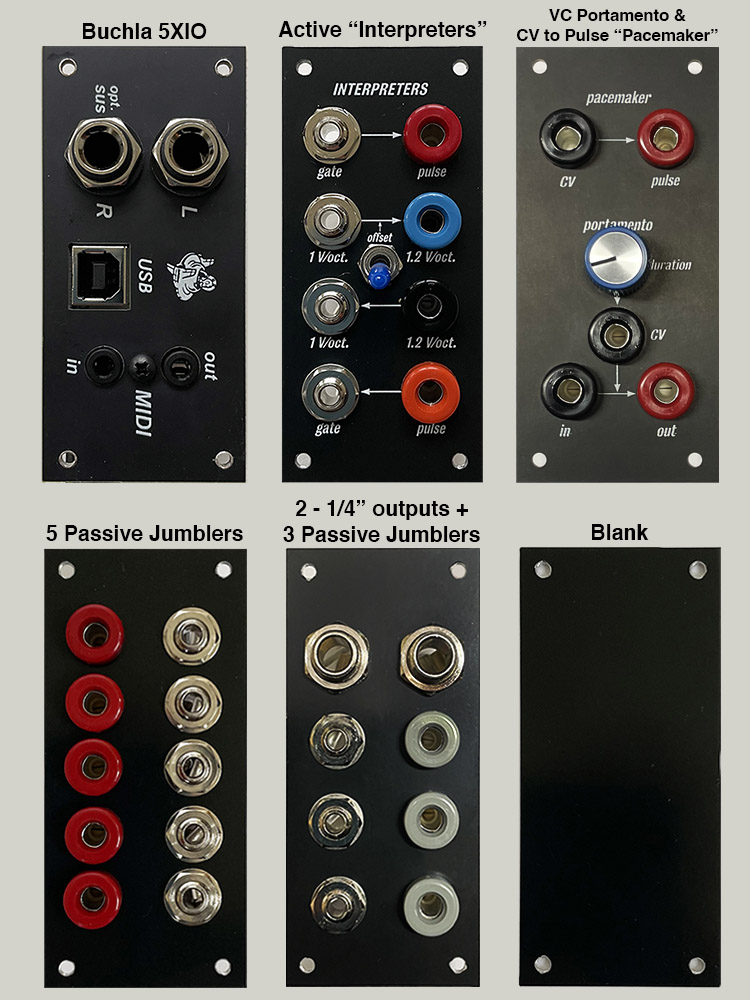

Some available Accessory Pod options
For the 208c to be MIDI-capable, it first needs Buchla's "208c MIDI Expansion" card. This comes automatically
In order to get MIDI into the 208c or out of the 218e, you'll need a small "5XIO" from Buchla USA for each module.
Contact me to discuss options further!
Copyright Luther R. Please ask for permission to use any of my content.
- Case shell custom manufactured in USA by Zero Halliburton of aircraft aluminum.
- Exterior and interior coated with textured paint in the original color Buchla used.
- Lift-off hinges so the lid detaches fully for performing.
- Sleek polycarbonate handle and chrome latches which are inverted to stay out of your way while playing.
- Aluminum boats and power panel manufactured in USA and powder coated textured black.

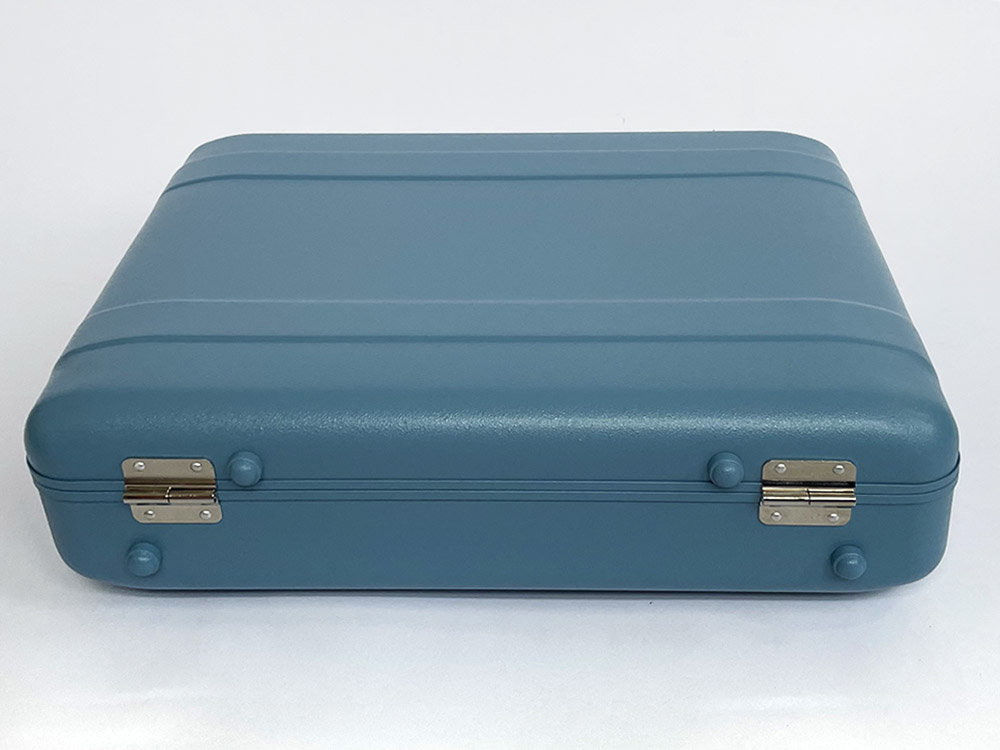

- Four aluminum and four rubber feet keep the case in place when at rest.
- Power supply is a high quality Buchla USA "e" series, supplying plenty of current for modules and expansion cards.
- PSU provides 18-pin header for 208c power cable and "H" headers to power the 218eV3.
- Vinyl pad fills in the extra space and serves as a hand prop while playing, like the originals.
- 12V conversion is via an adapter located inside the case. You only need to supply an IEC power cable and 100-250VAC.
- No modifications needed for voltage differences when traveling.
- Additional power distribution board can be installed in the upper boat if more connections are needed for smaller modules.

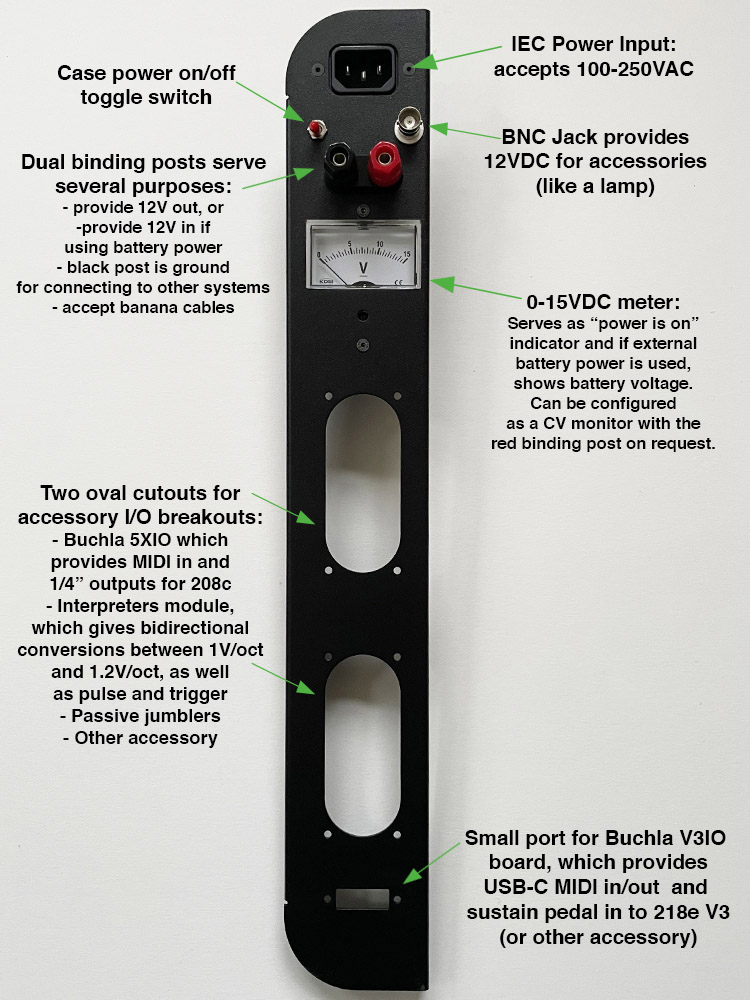

- See below image for power panel feature description.
- Casesuits, protective soft covers, are available also!
1. The "Classic" has a clean, vintage-style black power panel with just the basics, similar to the original 1970s Easels.
This model has the 12V converter tucked under the panel.
more details in photos below.
A: No, all you need is a screwdriver to remove the modules. There are a few cables to hook up
and you're set! I've made some instructions to guide you through the process.
Q: Can you make them in different colors?
A: These come from Zero already painted in the unique blue color. If you'd like a black or silver
case, try the Aero-Naught.
for availability and pricing.
208c and 218e compatibility -
However, we now have new modules available that have extra bells and whistles. The 208c and 218e
both have MIDI capability.
- HOWEVER -
The MIDI needs some extra circuitry to work. On the 208 Command and 218 LEM units, those extra circuits
are built into the power supplies for those specific cases.
The supplies I normally install are the 200e type, which provide more power and flexibility for future modules
but they don't have any CV/Gate translation, MIDI, or footswitch control built in.
with the 208 Command unit, but if you buy the 208c as a standalone module it needs to be purchased separately.
If you also need CV/Gate conversion, I can install the "interpreters" to assist with this.
MIDI and sustain for the 218e V3 can be achieved using Buchla's V3IO board and the rectangular cutout.
(see info on the "Docking Bay" version above)
